File / Asset Structure (Entities & Fragments)

At Animal Logic, we organise files into “Entities & Fragments” Libraries.

Note: If we weren’t using a custom asset resolver internally, we would probably use two PXRARDEFAULTSEARCHPATHs (pointing to /entity and /fragment) to make asset idenitification very simple.

Entities

High level production concepts like Characters, Environments and Shots.

Fragments

“Data Bundles”, such as Geometry (with various representations) or Materials & Textures (Looks).

Domain Layers

Layers on the Entities which connect the Fragments to the Entities. Those layers exist for each Pipeline Step (Department).

Shared Fragments

Fragments allow us to re-use data to reduce duplication of assets. For example, we can create
“surfacing variations” by sharing the same geometry and rig, but using different looks:

Assemblies & Breakdowns

We connect Entities to other Entities is via the Assembly and Breakdown Fragments.

For an Environment entity to be populated with “Setpiece” entities, we use Assembly fragments:

At the shot level, the Breakdown fragment brings entities such as Characters, Cameras or Environments.
Other fragments provide shot-specific overrides, for example:

• Lights unique to the shot.
• A simulation cache from fx.
• Camera caches by layout.

Composition Arc Diagrams

Internally, we use more complex diagrams such as the one below to describe relationships between the files. We have many diagrams for various composition workflows, such as “Characters”, “Matte Painting” or “Crowds”.

Open in a new window for details.

Asset authoring

The creation of Entities and Fragments is handled by our internal tool “Film Studio”. It is not the focus

Terminology & History

Whilst the terms above could be considered non standard, we note that we’re not aware of an agreed upon industry standard to use in place thereof (ie, even ftrack and ShotGrid use the term “Asset” to describe different concepts).

USD Adoption at Animal Logic initially started in 2017 in animation and was introduced across all departments in 2019.
We started by having versions of our geometry pipeline files encoded in USD (modelling geometry and animation caches),
followed by using USD to represent the “relationships between assets” (introduction of Entities & Fragments pipeline,
then updating lighting with USDLux in a full USD workflow, then shading workflows to USDShade and some of our previously
existing instancing tools with PointInstancers.

Our most recent transition is adopting USDSkel for our crowds, charfx and animation library workflows.

The composition arcs choices have been driven by a balance between our USD knowledge and
how much we can commit to change, always exploring ways of making our pipeline more flexible, robust and capable of meeting
creative requirements from our shows.

Demonstrated USD Concepts

Composition Arcs

This is an overview of some of the USD composition arcs we use in these assets. To walk through the examples,
make sure to be on the main folder where the downloaded assets exist, e.g.:

cd ~/Downloads/USD_ALab

Payloads

For data which is potentially “heavy”. This data should generally be stored in crate (.usdc) files and
generally does not refer to other files itself.

Usually, we use payloads within the “Fragment” files, for example, for fragment/geo/modelling/books_encyclopedias01/geo_modelling_books_encyclopedias01.usda:

usdview fragment/geo/modelling/books_encyclopedias01/geo_modelling_books_encyclopedias01.usda

Scene description data such as “variants”, “extentsHints” or “model kinds” are kept “outside” the payloads so that they are available even when payloads are not loaded.

variantSet "geo" = {
    "base" {
        float3[] extentsHint = [(-6.79881, -0.040903993, -7.7824764), (7.272438, 18.345064, 6.9421234)]

        over "GEO" (
            payload = @base/mesh/geo_modelling_books_encyclopedias01_base_mesh_v010.usdc@
        )
        {
        }
    }

We split each variant into a different payloaded file since those are usually created at different times in our pipeline (and
some might depend on each other), for example, the display_high payload is automatically created in Houdini once a render_high payload is
published from Maya.

VariantSets

Different workflows require different representations of the same data. We allow different clients to choose
the most appropiate by exposing all possible representations via variant sets.

On the fragment fragment/geo/modelling/books_encyclopedias01/geo_modelling_books_encyclopedias01.usda:

usdview fragment/geo/modelling/books_encyclopedias01/geo_modelling_books_encyclopedias01.usda

We can find several variants for the geo variant set:

def Xform "root" (
    prepend variantSets = "geo"
)
{
    ...
    variantSet "geo" = {
        "base" {
            float3[] extentsHint = [(-6.79881, -0.040903993, -7.7824764), (7.272438, 18.345064, 6.9421234)]

            over "GEO" (
                payload = @base/mesh/geo_modelling_books_encyclopedias01_base_mesh.usdc@
            )
            {
            }
        }
        "client_model" {
        }
        ...
        "render_high" (
            variants = {
                string geo_vis = "preview"
            }
            prepend variantSets = "geo_vis"
        ) {
        ...
}

Some variants exist only because we create the USD files from templates. In the future, we aim to improve the USD generation workflows to author only what is needed on a case by case basis, so we would not see empty “client_model” or “muscles” variants unless required.

To know more about our variants in the pipeline, visit the “Variants” section.

References

References are like payloads, but “always loaded”. We use references to bring “Fragments” into “Domain Layers”.
For example, the Modelling Layer on prop entity/books_encyclopedias01/modelling/books_encyclopedias01_modelling.usda references a Geo fragment:

usdview entity/books_encyclopedias01/modelling/books_encyclopedias01_modelling.usda

We could have also used sublayers in many cases to achieve simiar results as we usually reference the root prim.

def "root" (
    prepend references = @../../../fragment/geo/modelling/books_encyclopedias01/geo_modelling_books_encyclopedias01.usda@
)

This is a scenario where “what arc to use” was driven by a historical technical reason. In this case, our geometry
pipeline I/O required DCCs to refer to a “single root Xform” for the geometry files. Choosing sublayers instead required our legacy pipeline updates which we did not want to commit to do.

When more domains started transitioning to USD, most followed the reference approach for the sake of consistency, but
in cases where a sublayer or another arc solved a particular workflow, those deviations are embraced (for example, on shots,
our fxcache fragments are sublayered and not referenced).

Sublayers

Sublayers are mainly used in our assets to add domain layers (departments or pipeline steps) to entities,
for example, for entity entity/books_encyclopedias01/books_encyclopedias01.usda, we have:

usdview entity/books_encyclopedias01/books_encyclopedias01.usda

    subLayers = [
        @surfacing/books_encyclopedias01_surfacing.usda@,
        @modelling/books_encyclopedias01_modelling.usda@
    ]

Some Domain layers have additional “sub-domain” layers. For example, animbase and animfxcache subdomains are sublayers of the animation domain. We do this because our “department delivery” mechanism is tied to domains and animation needs to iterate internally on the “sub domain” before delivering the animation domain for downstream consumption.

Specializes

We use this arc in a very different way to the other ones and for a very specific reason.
It ensures that the root prim of our entities has a type (Scope), while allowing domains to
override it with a more appropriate type (e.g. Xform by modelling or SkelRoot by rigging for characters with USDSkel) via their referenced fragments.
In other words, an opinion which is contributed via some complex composition arc (variant within a reference within a sublayer) needs to bring an opinion which is stronger than the “local” opinion. So we consulted LIVRPS and chose the arc with the weakest strength to set the type. Now, we can just reference a rig fragment into the rigging layer of an entity and the root prim will change it’s type to skelRoot.

On the entity entity/books_encyclopedias01/books_encyclopedias01.usda:

usdview entity/books_encyclopedias01/books_encyclopedias01.usda

def "root" (
    ...
    prepend specializes = </_root_type>
)
{
}

class Scope "_root_type" (
    doc = "This prim holds the 'fallback' type of the default root prim"
)
{
}

We ensure the specialized _root_type prim is a class to let most workflows know they can “ignore it” for their common traversals.

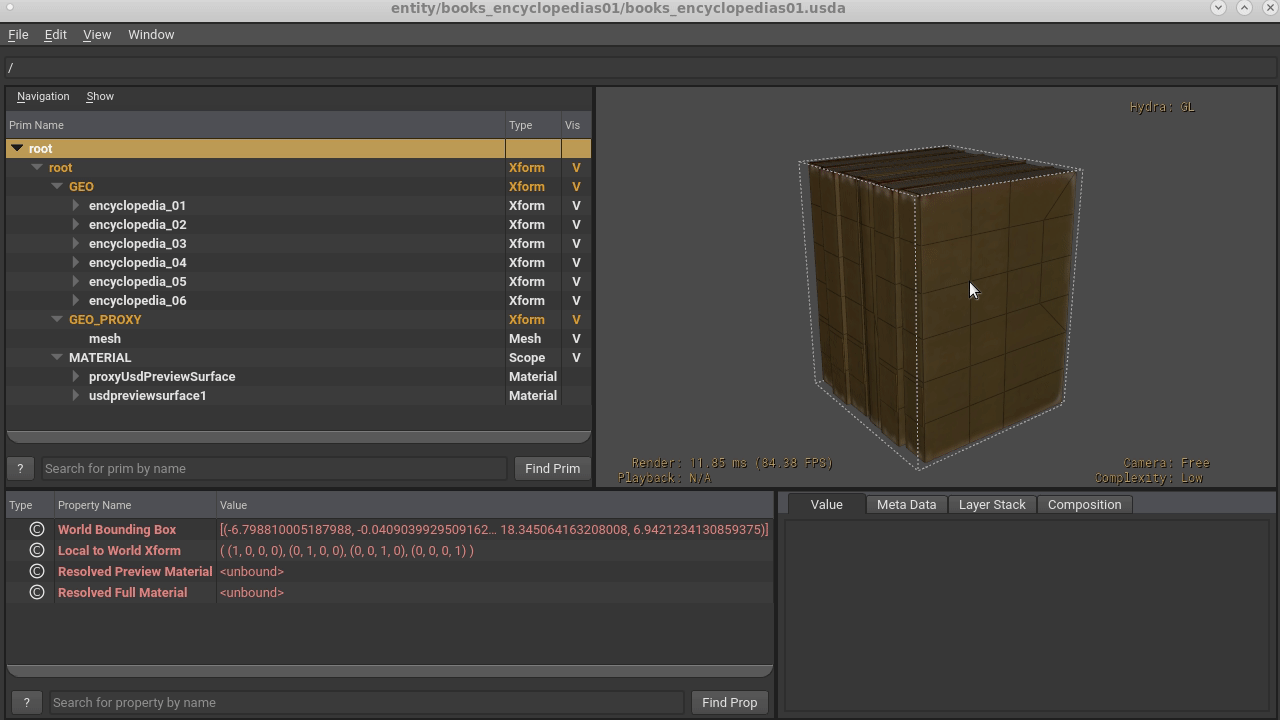

Purposes

The assets utilize USD purposes to switch between a lower resolution for OpenGL/viewport display and higher resolution for rendering. This means that users should only have to switch the purpose in the delegates’ settings and should not have to switch variants.
Also see the section on “UsdPreviewSurface Materials” below for more information.

Display Colors and Opacity Colors

Animation and other shot departments often need to commence work on assets which have not been surfaced yet.

We author displayColor and displayOpacity attributes in the Modelling department in Maya for this purpose.

Later on, when surfacing starts to supply materials, they will superceed the display colors and textures appear in the viewport.

Variants

Each of the published entities (characters, props, environments) exposes variant sets on the default prim. (e.g. geo, geocache, camera, skeleton, alfro, weave)

This allows consumers of those entities (mainly shot departments), to safely make variant selections on those root prims directly.

One nice aspect of variants is that there is a fallback mechanism that can be set programmatically when opening
stages or via a plugin on the environment. We use both on our pipeline and this means we never publish characters, props or
environments with internal variant selections. We always defer those selections to consumers of the entities via the mentioned mechanisms.

Note: We used to have look set with render_high and display_high variants but dropped it since we started authoring both preview and final render opinions on the same “look” asset.
Since this started happening in the middle of a production, the main asset location remained “renderhigh”. So these look fragments contain both “render” and “preview” shaders even though the filenames are “renderhigh”.

Geo Variants

All our geometry contributions (mainly coming from the modelling domain), expose different representations of the same data for different consumers.

We provide 2 variant sets: geo and geo_vis:

Geo Variant Set

These variants in our pipeline shine with rigged entities (characters, props) and we’re excited to share some examples in the future.

Pose Variant Example

When modelling creates the “base” geometry, they can also provide a “pose” version for it, which will override the “points” property only:

usdview fragment/geo/modelling/books_encyclopedias01/pose/mesh/geo_modelling_books_encyclopedias01_pose_mesh.usdc

This will sublayer the render_high version and override points properties only:

#usda 1.0
(
    defaultPrim = "GEO"
    subLayers = [
        @../../render_high/mesh/geo_modelling_books_encyclopedias01_render_high_mesh.usdc@
    ]
)

over "GEO"
{
    over "encyclopedia_01"
    {
        over "encyclopedia1_cover_M_geo"
        {
            point3f[] points = [(-6.766857, -0.01848345, -5.47812), ..., (5.8743553, 18.286024, -5.140335)]
        }

        over "encyclopedia6_cover_M_geo"
        {
            point3f[] points = [(-6.6372204, 0.0063685314, 6.9421234), ..., (5.99792, 18.313019, 6.507246)]
        }
    }
}

This allows workflows to switch to the pose variant while retaining all render_high attributes like pref, displayColor and st.
We use this mainly for situations where we want to preview the entities with a bit of personality with the official geometry and before
rigging and animation have worked on it.

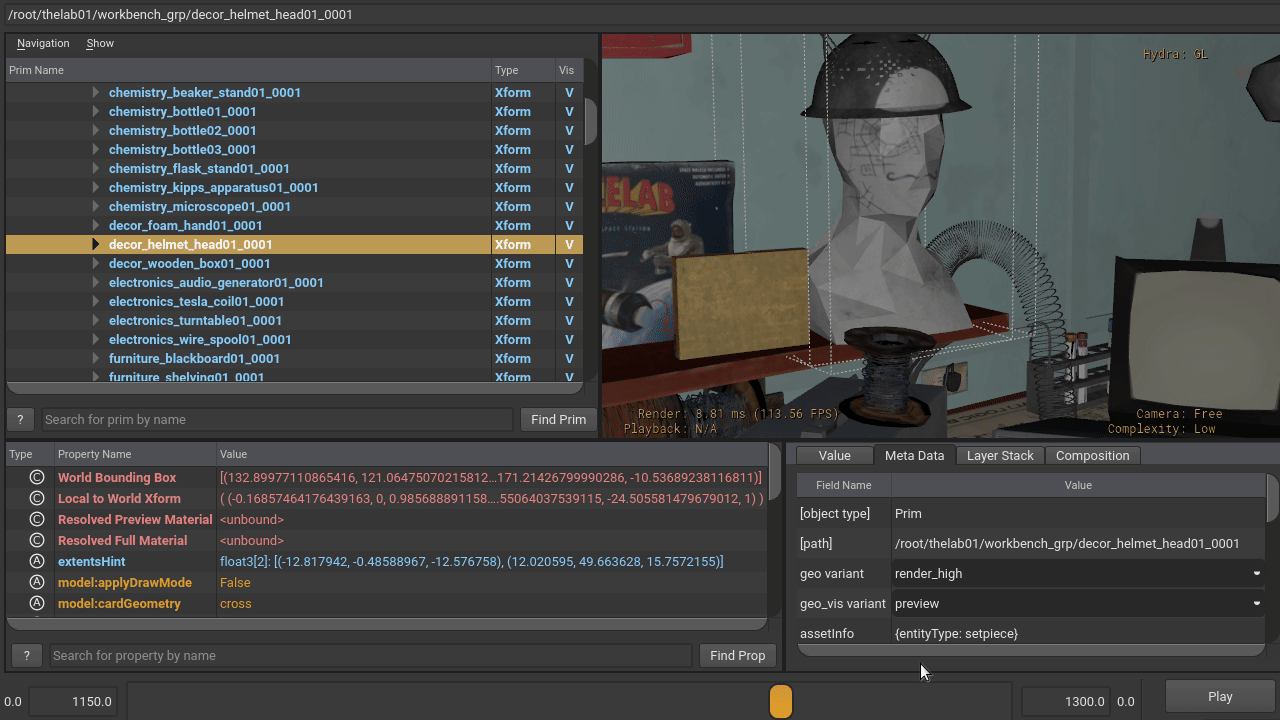

Geo Vis Variant Set

This provides clients flexibility to switch visibility level between the render and proxy purposes on a per entity level.

For example, an artist on a shot with a big environment might want to see on the viewport the “high res” geometry version of a setpiece to interact with a character.
They can switch that setpiece to geo_vis=default to remove any render & proxy purpose opinions while still being on the render_high variant.

ExtentsHint & Payloads

When packaging, we compute extents for all geo fragments. This applies at the shot level as well, so you can have animated extentsHint properties.

This allows for unloaded stages to provide a preview of all bounding boxes on a shot, allowing for processes like frustrum culling.

We payload all heavy data behind fragments as described on the Composition Arcs section.

Camera Domain Variants

USD’s composition of multiple opinions from different layers onto the same prim is usually desired. For example, a character fx layer might contribute a point attribute on a cloth prim which overrides the point attribute which animation has contributed.
However, on cameras, we decided that we usually don’t want to over opinions from the contributing departments (layout and animation), but prefer to see either one or the other. So cameras provide a “domain variant” which allow the user to switch between the cameras which have been authored by layout and by animation.

Point Instancer

Previously we used in house procedurals for instancing elements of environments (e.g. vegetation in a forest) as well as
instancing elements of the vegetation (e.g. leaves, twigs, branches of trees).
We have updated those workflows to author native USD Point Instancers instead, which still give the
ability of having nested instancing + gives us the benefit of multi DCC support and the rest of the USD composition arcs.

You can find the point instancer under:

usdview fragment/spruce/modelling/vegetation_bonsai01/spruce_modelling_vegetation_bonsai01.usda

Or, with the lab opened, it is on prim at path:

/root/workbench_grp/vegetation_bonsai01_0001

The point instancers come with off and render variants under the variant sets spruce and spawn.

Cameras & Frame Range

We provide 4 cameras. Usually, they would exist in different shots in our pipeline, but we have referenced them all into the same “hero” shot (ztl01_060) for user convenience. The frame range of the shot is:

• Start Frame: 1201
• End Frame: 1300

The other cameras may have longer or shorter frame ranges, but we have aligned them all to start on 1201 so you can switch easily between them.

Value Clip & “Keep Alive”

The same bonsai entity: vegetation_bonsai01 provides “keep alive” behaviour. This means that it
has a “loopable” animation on the instances which makes it come to life. We achieve this via
value clips in USD. On fragment/spruce/modelling/vegetation_bonsai01/base/groom/spruce_modelling_vegetation_bonsai01_base_groom/groom.usda

usdview fragment/spruce/modelling/vegetation_bonsai01/base/groom/spruce_modelling_vegetation_bonsai01_base_groom/groom.usda

(
    ...
    defaultPrim = "root"
    endTimeCode = 100
    framesPerSecond = 24
    metersPerUnit = 1
    startTimeCode = 1
    subLayers = [
        @clip.usda@,
        @payload.usdc@
    ]
    timeCodesPerSecond = 24
)

Which sublayers clip.usda, where we can see the clip data:

over "root" (
    clips = {
        dictionary default = {
            double2[] active = [(1, 0), (100, 0), ..., (5000, 0)]
            asset[] assetPaths = [@payload.usdc@]
            string primPath = "/root"
            double2[] times = [(1, 1), (100, 100), ..., (5000, 51)]
        }
    ...

To learn more about value clips you can visit Pixar’s Docs

Assemblies & Native Instancing

At Animal Logic we make heavy use of instancing whenever possible. By default, all entities used on an environment are instanced.
This means if we use the same 7 windows on a city, they all share the same prototype prim. ALab is no exception, these are the most frequently used entities (all of which are instanced):

usdview fragment/assembly/modelling/thelab01/assembly_modelling_thelab01.usda

Key observations:
1. Instancing is currently set on the “referencing” prim - on the component (Entity) root by setting instanceable = true.
2. Overrides are applied on the same prim.
3. It would be very interesting to experiment with different instancing layouts, such as instancing the GEO scopes and the materials.

        def Xform "chemistry_test_tube03_0001" (
            instanceable = true
            prepend references = @../../../../entity/chemistry_test_tube03/chemistry_test_tube03.usda@
        )
        {
            ... # transformation overrides
        }
        def Xform "chemistry_test_tube03_0002" (
            instanceable = true
            prepend references = @../../../../entity/chemistry_test_tube03/chemistry_test_tube03.usda@
        )
        {
            ... # transformation overrides
        }

UsdPreviewSurface Materials & Textures

usdview fragment/look/surfacing/books_encyclopedias01/render_high/binding/look_surfacing_books_encyclopedias01_render_high_binding/render_high.usda

• Display Purpose: Proxy

The display purpose utilizes simplified UVs, materials and single channel textures baked from the highres textures to 512x512px jpegs. The UVs and materials are stored in a single USD file and produced by the same pipeline process.

• Display Purpose: Render

The “render” purpose utilizes the “original” UDIM based UVs and the materials are parameterised with a number of jpeg 2k textures which seem to work well for viewport display and rendering. We also provide additional textures / channels for users who would like to setup their own materials.
Textures are ACEScg with an sRGB tone curve applied (OCIO: Utility - Curve - sRGB, or Nuke: standard sRGB tone curve (sRGB (~2.2) in colorspace node)).

Note: We also provide an additional set of higher resolution textures to simulate more real world “production rendering”. It an be downloaded from animallogic.com/usd-alab

Lights

The lights are a loose reconstruction of the much more complex rig we use internally. Notably, no light filters (such as blockers) are used, and there is no light-linking. Currently only RectLights are used, some with shaping cones. The lights are colored using the colorTemperature parameter.

Light Variants

The lights are targeted at two widely-available renderers. The /root/lightrig prim contains provides two variants to adapt the lights to these renderers. In particular it adjusts the intensity of the lights by a few of orders of magnitude.

• SideFX Houdini’s Karma (default variant)
• NVIDIAs Omniverse’s RTX Path-tracer (omniverse variant)

The omniverse variant also includes a projected map of foliage shadows for the sunlight on the wall.

Note: This release targets USD 20.08. In USD 21.05+, most light parameters now require a input: prefix. FWIW, the next version of Houdini comes with a small tool to upgrade the parameters.
